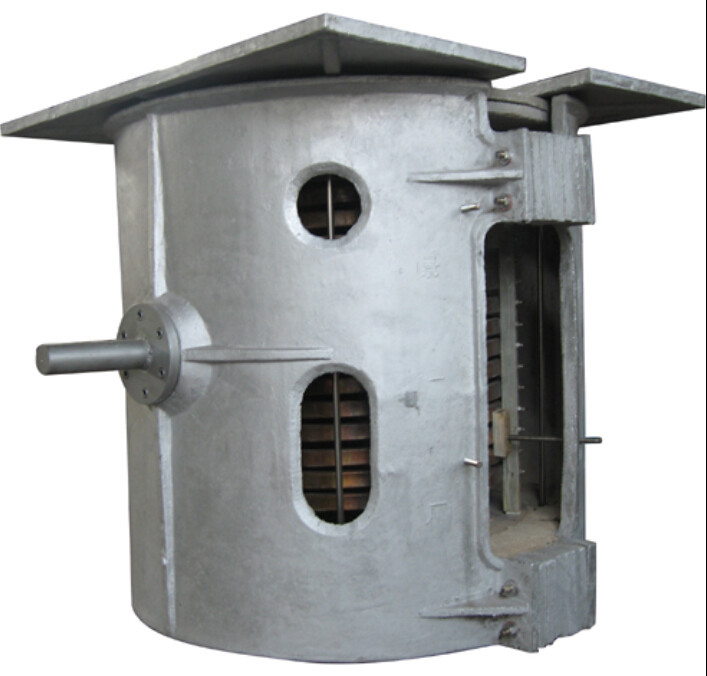

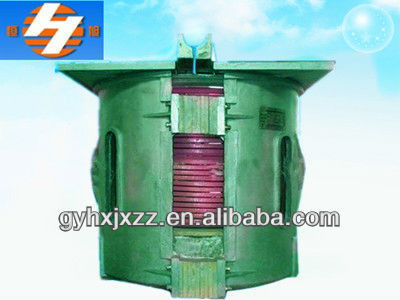

High Quality Steel Iron Melting Furnace For Sale
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Type: | Induction Furnace |
|---|---|---|---|
| Usage: | Melting Furnace | Voltage: | 380V~1000V |
| Dimension(L*W*H): | Above1m*2m | Warranty: | 1 YEAR |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Weight: | 10kg~40ton |
| Power: | 100kw-3000kw | MOQ: | 1set |
| Delivery Time: | Within 1 Month | Raw Material: | Cast Steel |
| Color: | Siver | Packaging Details: | Wooden Box |
| Payment Terms: | T/T,L/C,D/P,D/A,and So On | Fuel: | Oil, Gas, Diesel,electric |
| Key Words: | Induction Furnace | Delivery Port: | Qingdao & Tianjin |
| Port: | Qingdao,tianjin,shanghai |
2013 hengxu new design low price melting induction furnace
induction/melting furnace's technical parameters
| Furnace Capacity | Rating Power | Input Voltage | Input Phase | Input Current | Assorted Transformer | Output Voltage | Output Frequency | Melting Time | Volume | Weight |
| 10-50KG | 50KW | 380V | 3 | 80A | 60KVA | 750V | 2.5KHZ | 20-60Min | 1.2 m³ | 350KG |
| 100KG | 100KW | 380V | 3 | 160A | 120KVA | 750V | 1KHZ | 20-60Min | 6 m³ | 1500KG |
| 150KG | 100KW | 380V | 3 | 160A | 120KVA | 750V | 1KHZ | 30-70Min | 6.5m³ | 1600KG |
| 200KG | 120KW | 380V | 3 | 192A | 150KVA | 750V | 1KHZ | 30-70Min | 7.5m³ | 1700KG |
| 300KG | 130KW | 380V | 3 | 208A | 150KVA | 750V | 1KHZ | 30-70Min | 8.5m³ | 1800KG |
| 500KG | 250KW | 380V | 3 | 400A | 315KVA | 750V | 1KHZ | 30-70Min | 9.5m³ | 2300KG |
| 600KG | 350KW | 380V | 3 | 560A | 400KVA | 750V | 1KHZ | 40-80Min | 11m³ | 2500KG |
| 750KG | 450KW | 380V | 3 | 720A | 500KVA | 750V | 1KHZ | 40-80Min | 12m³ | 3800KG |
| 1000KG | 600KW | 380V 380V-2 | 3/6 | 960A 480A | 600KVA 800KVA | 750V 1300V | 0.8KHZ | 50-90Min | 13m³ | 4500KG |
| 1250KG | 800KW | 380V 380V-2 | 3/6 | 1280A 640A | 800KVA 1250KVA | 750V 1300V | 0.8KHZ | 50-90Min | 14m³ | 5000KG |
| 1500KG | 1000KW | 380V 380V-2 | 3/6 | 1600A 800A | 1250KVA 1500KVA | 750V 1300V | 0.8KHZ | 50-90Min | 15m³ | 5500KG |
| 2000KG | 1250KW | 660V 380V-2 | 3/6 | 1120A 1000A | 1500KVA 1800KVA | 1300V | 1300V | 50-90Min | 17m³ | 6000KG |
| 3000KG | 1500KW | 660V 380V-2 | 3/6 | 1350A 1200A | 1800KVA 2000KVA | 1300V | 1300V | 60-100Min | 20m³ | 7000KG |
| 5000KG | 2500KW | 1000V 660V-2 | 3/6 | 2000A 1120A | 3000KVA 3500KVA | 1300V | 1300V | 60-100Min | 23m³ | 8500KG |
1. company introduction
advantage :1. more than 30 years experiences
2.work with more than 50 country . last year exported $300 million in Middle East , and exported $195 million in russian , and other Southeast Asia and Western Europe, American and so on.
3. more than 50 engineer ,
4.offer professional service
5.obtain AAA,ISO9001,BV
6.more than 200 staff
2.our main product
3.our machine can make
4.the process
Billet procedure
1------billet---reheating---open-train---cutting machine--- rolling mill---several rolling mills -cooling bed---scal cutting machine---flying shear---packing table---storage table---sale
Scrap procedure:
2-----Waste steel ----melting---- casting----mold unloading----sorting-----deliver to heating furnace----heating to 1150 degree to 1200 degree----- come out furnace----- rolling----- finished product ----packing---- sales
5.our certification
6.our foreign customer
7.PACKING & SHIPPING
PACKING :
We will choose the right packing style for you according to the product characteristic, the stand machine will be packed by the wooden case and nude , others will be packed by safe .
Shipping :
We will choose the right container for you , the container will not overload and we try our best to reduce the your cost of LCL.
8.OUR SERVICE:
After-sale service:
Before sale: design the suitable machine based on the specific demands
Medium sale:1.based on customer’s demand to offer moderate quotation project
2.accept customers to visit our factory
3.help customer work out the schedule in china
After-sale:1.on-site training personnel
2. appoint special after-sale service staff, arrived at the scene guide clients installation and commission
As a professional rolling mills manufacturer in China, we have a lot of experience in design and manufacturing quality rolling mill. We provide the best price and quality, and it would be great if you could send us more information about your rolling mill project
9.FAQ:
- Paying terms: pay 30% advance payment by T/T bank transfer.Another 60% will be paid to the seller when the buyer loading containers. The balanced payment will be paid in 10 days after installation.The buyer must pay total amount for Item 16 and 17,no balance payment. Item 18, 5% balance payment will be paid to the seller in 10 day after installation. 100% payment of Item 5 when loading containers
- Delivery time: 60 days.
