Germany Rebar Rolling Machine TUV Steel Roll Mill Wire Rod Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Hot Rolling Mill | Condition: | New |
|---|---|---|---|
| Voltage: | 220V, 380V, 440V | Power: | 315KW |
| Dimension(L*W*H): | 2m Long,3m Wide, 2.5 High | Warranty: | 1 Year |
| Weight: | 12 Tons | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | Green | Weight: | 3-10tons |
| Dimension: | 2-5m | Working Type: | Hot Rolling |
| Heating Temperature: | 1150-1300 Centigrade | Package: | Wooden Box/nude |
| Raw Material: | Cast Steel | Final Product: | Deformed, Angle, Flat Rebar |
| Capacity: | 100000-500000T Annual | Model: | HB21 |

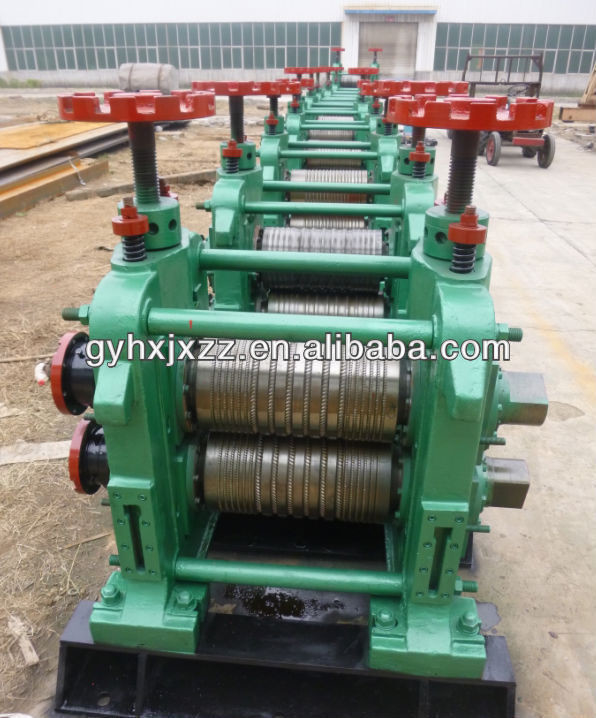

Germany TUV steel roll mill wire rod machine
1. rolling mill parameter
Input billet size: 100*100--120*120--150*150mm
Capacity: 10-30 tons per hour
Output size: 8-32mm deformed rebar/flat bar/angle bar etc.
Specifications:
we provide various one drag two continous rolling mill and distribution boxes,DC motors, reducer, flywheel, gear box, cardan shaft etc. Also we have induction furnace/arc furnace, CCM, cooling bed, packing machine, TMT water treatment.
Steel rolling procedure:
waste steel ----melting---- casting----mold unloading----sorting-----deliver to heating furnace----heating to 1150 degree to 1200 degree----- come out furnace----- rolling----- finished product ----packing---- sales
We can complete the Design, Manufacturing, Erection and Commissioning of Rolling Mill production line for various rolling mill. This is full auto continuous rolling mill, no mannual work, and durable. Working speed: 2 pieces/second.
We also have walking beam cooling bed, flying shear, packing, 12m length cutting, auto reheating furance, CCM, induction furnace etc.
|
Technical Parameters of Rolling Mills |
||||||||
|
Facility Model |
Power (KW) |
Linear Speed (m/s) |
Production (T) |
Rolling Pressure (T) |
Feeding Section |
Weight(T) |
Rolling Specification |
Annotations |
|
JY200 |
22-30 |
1.2 |
1.5-3 |
/ |
30×30 |
2.2 |
Max Φ20 |
rebar, flat, square steel |
|
Φ200×32 |
75/100 |
1.5 |
3-5 |
20 |
30×30 |
6.8-8.6 |
Max Φ20 |
rebar, flat, square steel |
|
Φ220×3 |
130/155 |
1.5-2 |
4-8 |
25 |
50×50 |
14.3 |
Max Φ25 |
rebar, flat, square steel |
|
Φ250×23 |
185/240 |
1.8-2.5 |
5-15 |
30 |
60×60 |
22.5/27.5 |
Max Φ34 |
whorl, flat, deformed, angle steel |
|
Φ250×5
|
500 |
2.5-5 |
30-40 |
30 |
60×60 |
38 |
6.5 wire rod |
all |
|
Φ300×23 |
380/560 |
2-2.5 |
10-15/20-30 |
50 |
90×90 |
43.6/58 |
Max Φ36 |
rebar, angle, channel steel |
|
Φ300×5 |
630 |
2-2.5 |
50-100 |
50 |
90×90 |
88 |
Max Φ36 |
rebar, angle, channel steel |
|
Φ350×23 |
680 |
2-2.5 |
30-50/40-60 |
80 |
100×100 |
65/80 |
All |
/ |
|
Φ350×5
|
800 |
2-2.5 |
80-120 |
80 |
100×100 |
115 |
All |
/ |
|
Φ400×2
|
850 |
2-2.5 |
50-100 |
100 |
120×120 |
84 |
402-902 |
/ |
|
Φ500×2 |
1000 |
2-2.5 |
150 |
150 |
165×165×1400 |
152 |
502-1002 |
except the motor weight |
2. rolling mills in our workshop
3. international customers
4. loading containers
5. production lines abroad
6. certifications
